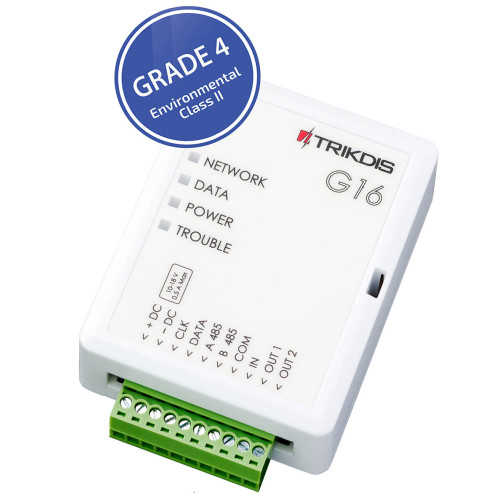

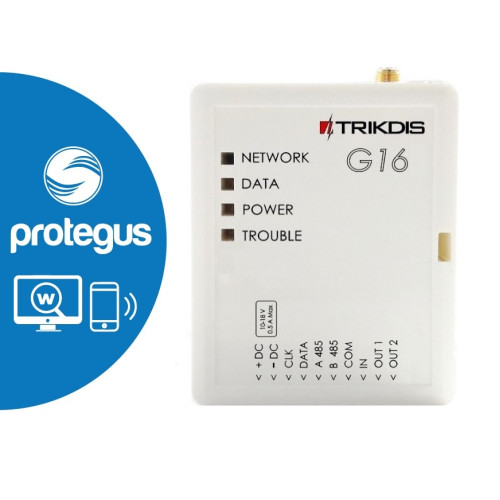

Trikdis G16 Data Bus communicator

Trikdis G16 is a GSM/GPRS/2G communicator that will upgrade your existing alarm systems due to the new features it brings for you.

Compatible with Paradox, DSC, GE Interlogix, Texecom intruder alarm panels.

Communicator transmits full event information to Alarm Receiving Centre. Event messages are transmitted in Contact ID codes.

Read messages directly from the DATA BUS.

Customers are informed about security system events with Protegus app or with SMS messages. They can Arm/Disarm their alarm system remotely.

Features

  • Two main communication channels working simultaneously;

  • Each channel has a separate back-up channel;

  • Connection control with ARC;

    Event messages are transmitted in Contact ID codes;

  • Simultaneous event reporting to Protegus Mobile/Web application, allowing user to remotely monitor and control its alarm system;

  • Event reporting via SMS messages to four different users in user-friendly SMS messages;

  • Remote Arm/Disarm feature with Paradox;

  • Security Grade 4, Environmental Class II;


Parameter Description
GSM modem frequencies 850 / 900 / 1800 / 1900 MHz
3G modem frequencies 800 / 850 / 900 / 1900 / 2100 MHz
Power supply voltage 10-18 VDC
Current consumption 60-100 mA (on standby)

Up to 250 mA (while sending data)

Transmission protocols TRK, DC-09_2007, DC-09_2012
Message encryption AES 128
Memory Up to 60 messages
Inputs 1 selectable type NC or NO
Output 2, OC type, commutating up to 0,15 A, 30 VDC max
Parameter configuration Locally via USB port or remotely
Operating environment Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C
Communicator dimensions 65 x 77 x 25 mm
Weight 80 g



Downloads


Write a review

Please login or register to review



Trikdis G16 Data Bus communicator

  • Brand: Trikdis
  • Product Code: Trikdis-G16-Communicator
  • Availability: In Stock
  • 117,81 €

  • Ex Tax Outside EU: 99,00 €

Tags: G16, GSM Communicator, GPRS communicator, Trikdis
